4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003

Name: 4 12kW 5U Subrack 85300Vac 200A Embedded DC Power Systems For Telecommunications 19inch Rack InstalledET48200003
Brand: ESTEL
Price: 715 USD

Quality 4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003 for sale

Brand Name : ESTEL

Model Number : ET48200-003

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : 715-4286 usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20,000 sets per month

Delivery Time : 7-10 working days

Packaging Details : carton/wooden case

Dimension : 482.0(W)*350.6(D)*5U(H)

Weight : ≤20kg (without rectifiers)

Cooling mode : Natural cooling

Installation mode : Installed on 19-inch rack or inside the cabinet

Cabling mode : Top inlet and top outlet

Maintenance mode : Front maintenance, support module grade change

Protection level : IP20

Input mode : 220VAC single phase

Contact Now

Embedded DC Power System

1.Embedded DC Power System Specifications

Type		4~12kW 5U Subrack
System	Dimension	482.0(W)350.6(D)5U(H)
	Weight	≤20kg (without rectifiers)
	Cooling mode	Natural cooling
	Installation mode	Installed on 19-inch rack or inside the cabinet
	Cabling mode	Top inlet and top outlet
	Maintenance mode	Front maintenance, support module grade change
	Protection level	IP20
AC Distribution	Input mode	220VAC single phase
	Input capacity	1×100A/2P
	Input frequency	45~65Hz, rated value: 50Hz/60Hz
	AC SPD	20kA/40kA, 8/20μs
	Output capacity	1×16A/1P, 1×10A/1P
DC Distribution	Output voltage	-43~-58VDC, rated value: -53.5VDC
	Maximum capacity	12kW(4KW*3)
	Battery breakers	2×125A/1P
	Load breakers	LLVD:2×63A/2P, 2×32A/1P, 2×16A/1P BLVD:1×32A/1P, 1×16A/1P, 2×10A/1P, 1×6A/1P
	DC SPD	10kA/, 8/20μs
Rectifier	Input voltage	85VAC～300VAC, rated 220VAC
	Efficiency	＞96.6%
	Rated power	4000W(176~300VAC)
	Working temperature	-40℃~+75℃(fully output below 50℃)
	Dimension	106.5mm(W)×286mm(D)×41.5mm(1U/H)
	Weight	≤2.1kg
	Cooling mode	Forced cooling
	Power factor	≥0.99 @220Vac 20-100% Load
Controller	Signal input	3 AI(2 Battery temp., 1 ambient temp.) ,8 DI ,2 RS485.
	Alarm output	8 dry contact
	Communication port	LAN,USB, RS485, SNMP
	Display mode	LCD
Environment	Operating temperature	-40℃~+70℃
	Storage temperature	-40℃~+70℃
	Operating humidity	5%~95%(non-condensing)
	Altitude	0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

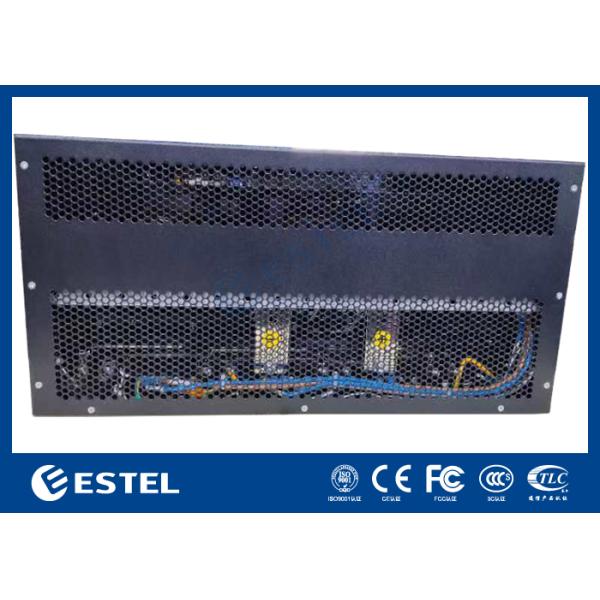

2. Product Pictures
