DC48V 300W Outdoor Cabinet Air Conditioner Variable Frequency Grey Color Low Noise
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Cooling Capacity : 320W |
| Brand Name: ESTEL | Rated Heating Capacity:300/500W (optional) |
| Model Number: TC06-30ZEH/01 | Dimension H×W×D: 520×360×187mm |
| Product Name: DC48V Outdoor Enclosure Air Conditioner | Input Voltage: DC48V, variable frequency |
| Certification:ISO9001, CE, 3C, FCC, TLC | Rated Input Current: 2.6A |
| Cover: include outer cover | Rated Input Power: 125W |
| Color: gray | Working Temperature: -20°C ~ +55°C |
| Protection Level: IP55 | Noise: ≤60dB |
| Installation Mode: door mounted, side mounted | Refrigerant: R134a |
| Support OEM | Cooling Method: DC48V compressor, active cooling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 16,000 sets per month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | carton + foam + wooden case |
1. Specifications
(1) Technical Parameters
| Model No. | TC06-30ZEH/01 |
| Environmental Performance | working environmental temperature | -20°C ~ 55°C |
| storage working temperature | -40°C ~ 70°C |
| working humidity | ≤95% |
| Thermal Performance | rated cooling capacity | 350W(L35 L35) 320W(L25 L35) |
| rated heating capacity | Optional |
| Electrical Performance | rated input current | 2.8A(L35 L35) 2.6A(L25 L35) |
| rated input power | 134W(L35 L35) 125W(L25 L35) |
| rated input voltage | DC48V |
| Reliability | MTBF | 60000 hours |
| Noise | ≤60dB |
| Refrigerant | R134a |
Dimension Diagram: H×W×D: 520×360×187mm
2. Introduction
This air conditioner is a cooling product developed for telecom industry where the AC power supply is lack. This air conditioner is powered by -48VDC. This air conditioner’s frequency can be regulated. It has cooling capacity regulating function, and the fans can regulate speed automatically to reduce noise.
The internal cycle air path absorbs the hot air from the upside, and discharges the cold air
from the downside of the air conditioner. The external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
The variable frequency air conditioner is widely applied for outdoor telecom base station cabinet, outdoor battery cabinet, outdoor rectifier cabinet, outdoor UPS cabinet, outdoor network cabinet etc.
3. Features
- Strong adaptability
- High intelligence
- High precision
- High reliability
- Low noise
- Low energy consumption
- With 4 way switching value detection
- With 1 way room air conditioner control
- Wide input voltage range: 48VDC±15%
- With dry contact alarm output
4. System Principle Diagram
Diagram 1: System Principle Diagram
5. Electrical Wiring Diagram
Diagram 3: Wiring Diagram
Wiring Ports:
0V -48V: power supply input (voltage input: 48VDC±15%)
F+ F- : direct ventilation output
AL1 AL2: general alarm output
A+ B- SGND: RS485 communication interface
N: not connected pin
6. System Control
6.1 Application
ET872 controller is a type of universal intelligent controller. It is controlled by highly integrated STC single chip microcomputer. It can intelligently control operating and hydrogen exhaust of thermostatic cabinet air conditioner, and can control a telecom room air conditioner. It have the following functions: fault self diagnosis, power on self start, restart after unexpected failures caused by other reasons.
The controller features perfect performance, easy and fast installation and setting, which is widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.
6.2 Main Technical Parameters
- 2×16 Chinese/English shift LCD display, user friendly;
- Simultaneously display temperature and humidity inside the box and communication room temperature;
- Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:4%;
- Can store 180 days’ daily event record, 1 record every day;
- Daily highest temperature, lowest temperature, average temperature
- Daily event record;
- Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
- RS485 or RS232 communication,RTU-Modbus protocol, support remote detection and control;
- Use PID control algorithm, intelligently adjust output power, optimize energy efficiency;
- Controllable air conditioner quantity: 2 sets. 1 set of air conditioner for communication room, and 1 set of air conditioner for thermostatic cabinet.
- Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner);
- Real-time control air conditioner on/off
- Power supply: DC48V;
- Power consumption:≤5W;
- Working environment: -30°C~70°C; <90%RH;
- Installation method: guide rail,hanging;
- Dimension(L×W×H):150mm×190mm×45mm
6.3 Operating Instruction

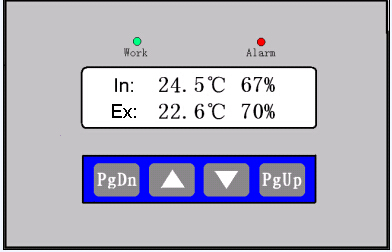

ET872 uses user-friendly interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:
7. Mainboard Wiring Diagram
8. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
